Another name

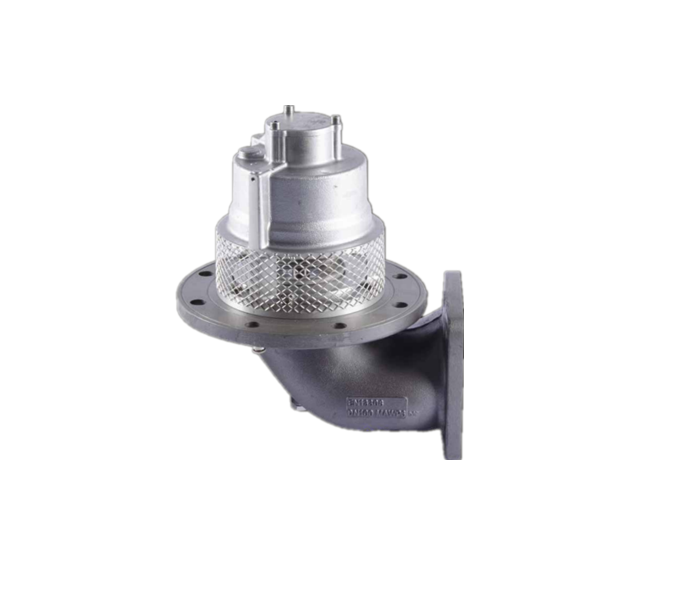

BOTTOM VALVE, EMERGENCY FOOT VALVE, EMERGENCY CUT-OFF VALVE

Usage

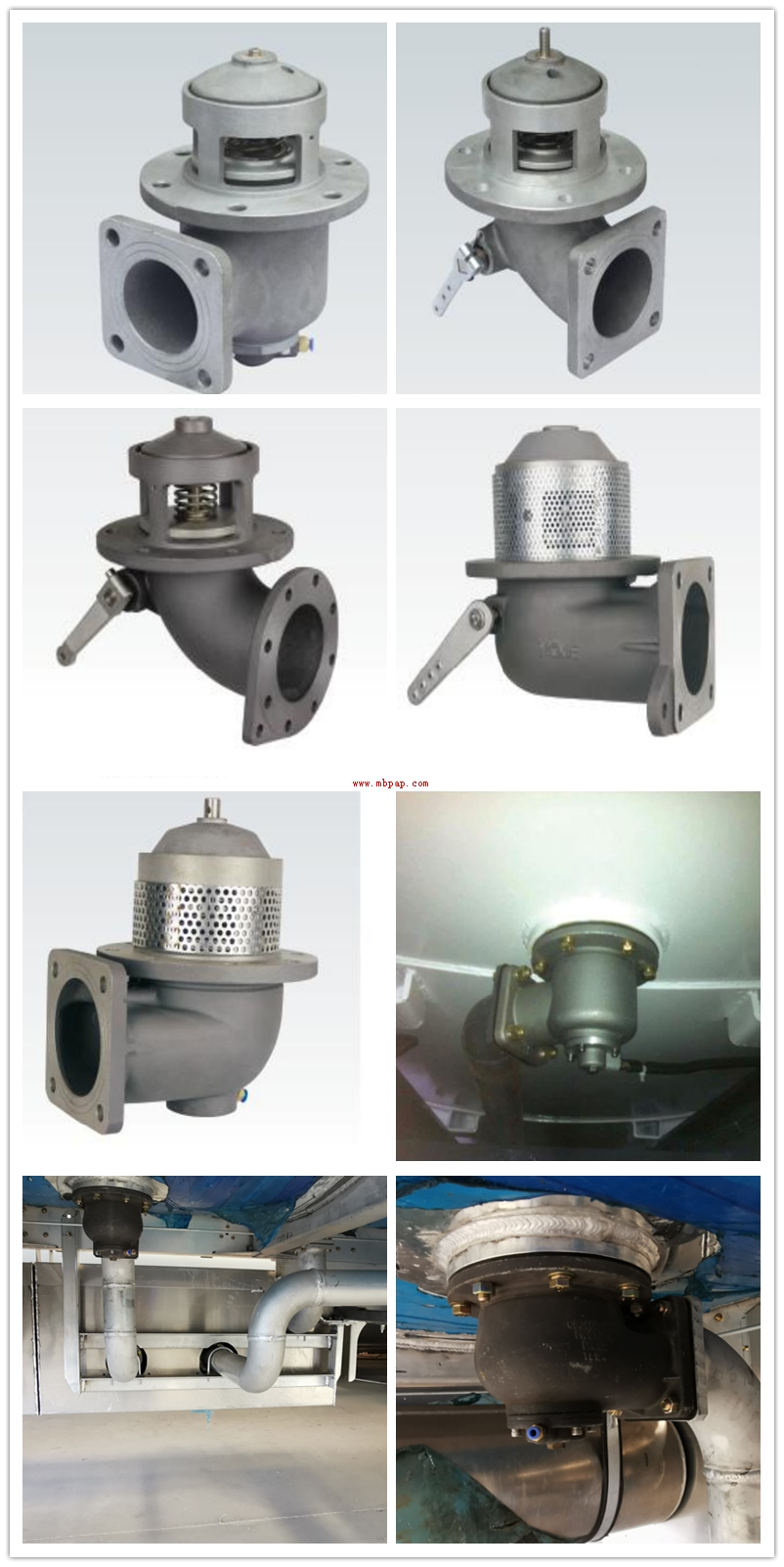

Bottom valves are designed for increased safety, durability and service performance. It is installed on the bottom of the tanker with flange connections, and the seals extend into the tanker. Utilizing stainless steel spring pressure with axial self-sealing to maintain emergency valve in closed state and operate opening and closing by transmission device. External shear groove can effectively absorb the energy from the pipe when the tanker is crashed down. The valve body cuts off from the shear groove and make the tanker and pipe separate to ensure perfect seals, avoid spillage and improve safety.

With perfect design, high flow, high drop to make the max benefit. Triple sealing on piston to reduce maintenance. Lightweight casting structure improves liquidity.

  • product details

Feature

1.       Aluminum alloy die-casting structure, anodized treatment

2.       Hydrodynamic design minimize pressure drop for high flow rate.

3.       Fixed plug structure, simple and practical

4.       Shear groove automatically cut off under emergency to prevent spillage

5.       Easy to be installed at compact place

6.       Utilizing pneumatic control valve to control the opening and closing.

7.       Used for many section tankers, separate loading and unloading for different fuel

8.       According to EN13308 (NONE PRESSURE BALANCED), EN13316(PRESSURE BALANCED), flange meets TTMA standard.
